BLK LBL SIG Cross Bipod FAQ & Technical Resource

Technical Resources

Have questions about the BLK LBL SIG Cross Bipod? Find answers on rifle compatibility (including SIG Cross STX top rail requirements), suppressor use, cant tension adjustment, and ARCA rail options, plus full technical specs on weight, leg extension range, and M-LOK accessory support. This FAQ and technical resource hub covers everything you need to confirm fitment and get the most from your setup.

In This Guide: Frequently Asked Questions, Compatibility, and Technical Specifications

This page is your go-to resource for detailed technical information, compatibility guidance, and answers to frequently asked questions about the BLK LBL SIG Cross Bipod.

Whether you’re considering an upgrade or want to maximize performance, this hub covers what you need to know.

Common Questions

1. Is the BLK LBL Bipod compatible with all SIG Cross rifles?

The BLK LBL Bipod is compatible with the SIG Cross, SIG Cross TRAX and SIG Cross Sawtooth. It is compatible with the SIG CROSS STX but the full-length top rail on the STX needs to be replaced with the short top rail available on the SIG website here.

2. Does installation require permanent modifications?

No. The BLK LBL system uses factory connection screws and the factory top rail. No permanent changes are needed.

3. How do I adjust cant tension?

Cant tension is tool-less. WIth the legs deployed, access to the adjustment wheel is available. Turn the adjustment wheel to increase or decrease resistance, letting you fine-tune for terrain or shooting style.

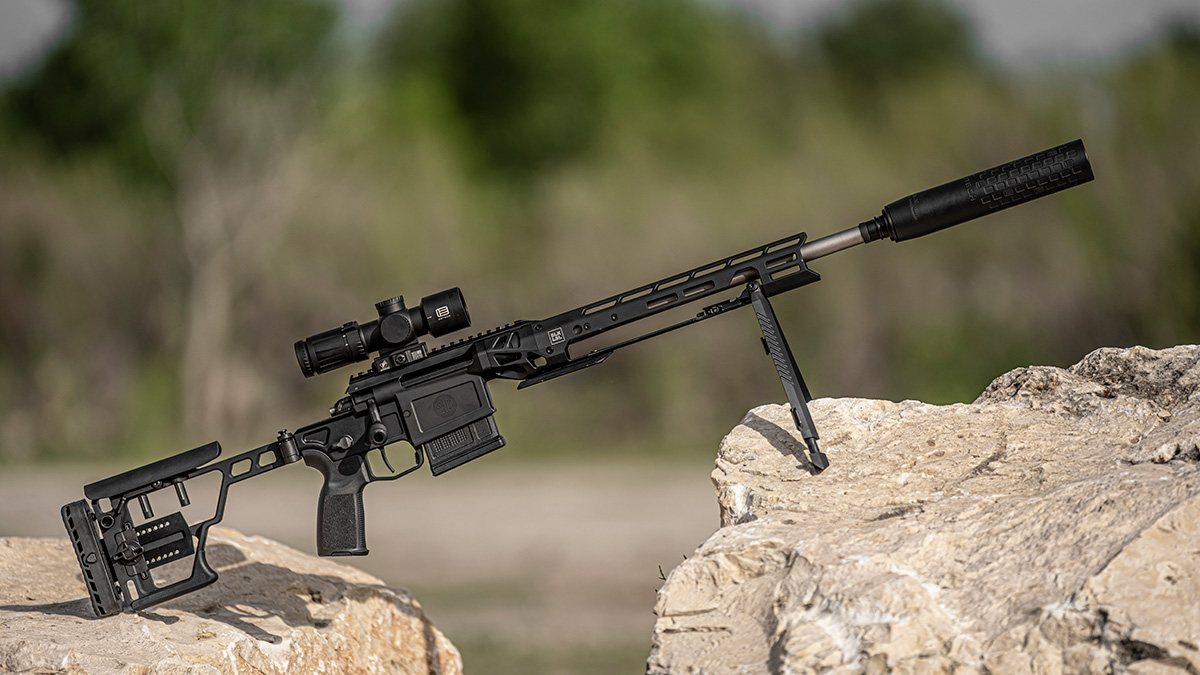

4. Can I use the rifle with a suppressor installed?

Yes. The free-floating handguard and internal clearances support suppressor use without affecting accuracy or bipod deployment.

5. What is the bipod leg extension range?

Legs extend from 7.9” to 11.5” (200–292 mm), giving flexibility for various shooting positions and terrain. Measurements provided are from the center of the bore to the bottom of the feet.

6. Does the bipod protrude when folded?

No. It folds flush into the handguard, leaving nothing exposed to snag on gear, barricades, or natural obstacles.

7. Are there accessory mounting options?

Yes. M-LOK slots on both sides, the top and the bottom, allow mounting of lights, supports, or other accessories without compromising the bipod system.

8. Is the BLK LBL Bipod ARCA compatible?

Yes, we offer two ARCA rail lengths that are compatible with any tripod while still allowing the bipod legs to open. BLK LBL ARCA rails can be purchased here.

Technical Specs & Fitment

Length: 13.8” (351 mm)

Weight: 17.3 oz (491 g)

Cant: Up to 30° center-bore rotation

Mounting: Factory screws & top rail

Handguard Material: Free-floating aluminum

Accessory Support: M-LOK (sides & bottom)

Finish Options: Black anodized (BLK) and MOSS Cerakote (Sawtooth match)

Installation Reference

For step-by-step installation, mounting tips, and field use guidance, refer to Sig Cross Installation & Fitment Guide in our Resource Hub.

Why This Resource Matters

Understanding the technical details ensures your SIG Cross performs optimally with the BLK LBL bipod. Correct setup and awareness of features like center-bore cant and tool-less tension make the difference in real-world stability and accuracy.

See our SIG Cross Pillar Overview for full specifications, performance breakdowns, and supporting technical resources.
