Step-by-Step Fitment for a Clean, Purpose-Built Setup
Upgrading your SIG Cross with the BLK LBL Integrated Bipod & Handguard transforms the rifle’s front end for precision, balance, and stability. Installation is straightforward, requires minimal tools, and preserves the rifle’s factory ergonomics.
This guide walks you through each step to ensure proper fitment, functionality, and accessory compatibility.
Tools & Materials Needed
- Torx or hex driver set (depending on factory screws)
- Bench block or stable surface
- Thread locker (optional, for added security)
- BLK LBL SIG Cross Bipod & Handguard kit
- Factory top rail and screws (retained from original handguard)
Installation Steps
1. Remove the Factory Handguard
- Ensure the rifle is unloaded and the bolt is open.
- Remove the factory top rail. Pay special attention not to lose the bolt catch spring under the top rail.
- Remove the six screws securing the factory handguard to the receiver. Remove the factory handguard following the SIG Cross manufacturer’s instructions.
2. Align and Mount the Handguard
- Place the BLK LBL handguard over the barrel, aligning with the factory mounting points.

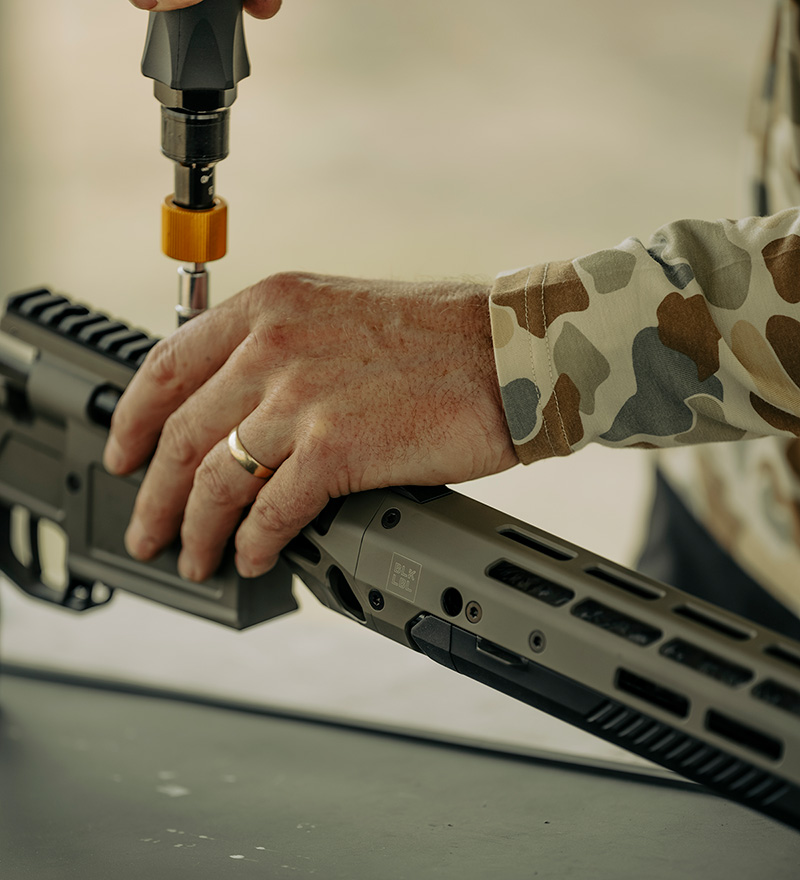

- Secure the handguard using the six factory screws torqued to 30 in-lbs (3.4 Nm). Apply optional thread locking compound to the screws.
- Tighten screws incrementally in a cross pattern to ensure even seating.
- Reinstall the factory top rail with factory screws tightened to 30 in-lbs (3.4 Nm). Appy optional thread locking compound to screws .

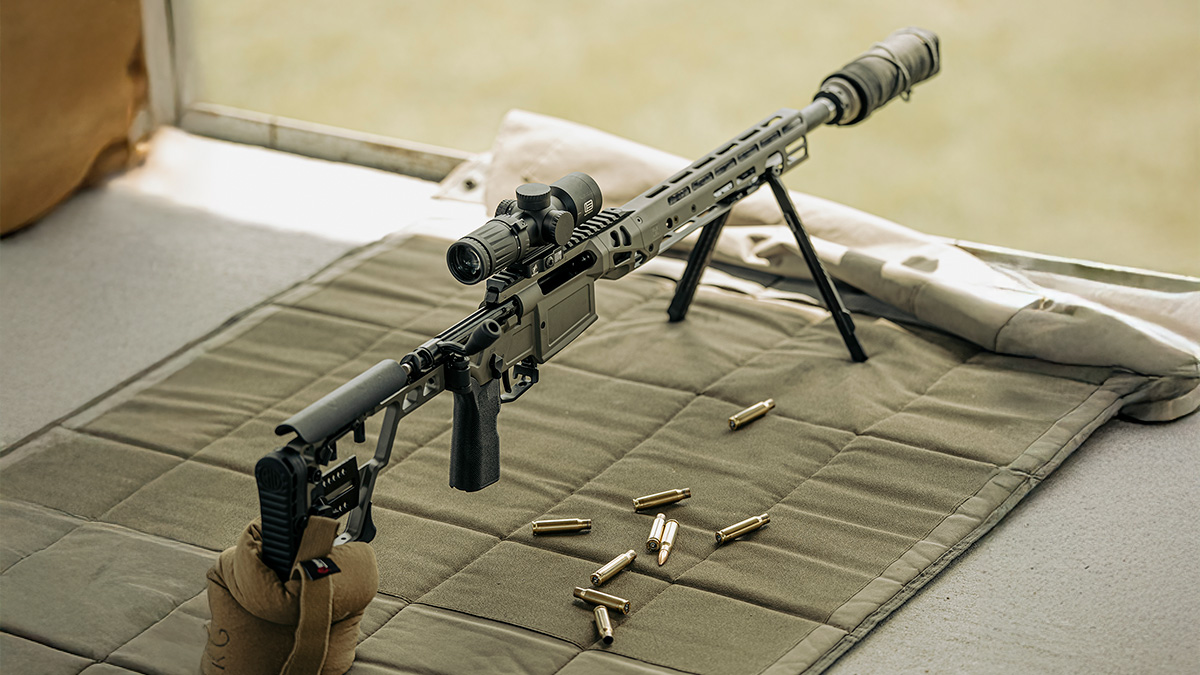

3. Check Bipod Deployment
- Extend the bipod legs fully and verify smooth movement.
- Adjust cant tension as needed using the tool-less adjustment knob.
- Ensure the bipod rotates around the bore axis without binding.
Fitment Notes
- Leg Extension: 6.0”–9.0” (152–228 mm), adjustable without tools
- Cant Rotation: Up to 30° center-bore
- Accessory Mounting: M-LOK slots on sides and bottom
- Compatibility: Designed for SIG Cross factory mounting points; no permanent modifications required
Tips for Optimal Performance
- Cant Adjustment: Fine-tune based on terrain and shooting position for smoother leveling.
- Suppressed Shooting: Ensure suppressor clearance; the free-floating handguard accommodates most setups.
- Transport: Keep bipod folded for snag-free movement.
- Maintenance: Check mounting screws periodically for tightness to maintain consistent performance.
Real-World Benefits After Installation
- Immediate stability when deployed
- Smooth, snag-free profile when folded
- Consistent recoil path thanks to center-bore cant
- Maintains the SIG Cross’s lightweight balance and handling
- Full access to M-LOK accessories
Experience the Difference
With proper installation, your SIG Cross now combines precision, balance, and tactical utility in a fully integrated front-end system. The bipod is no longer an accessory, it’s a part of the rifle’s engineered performance.
